Product

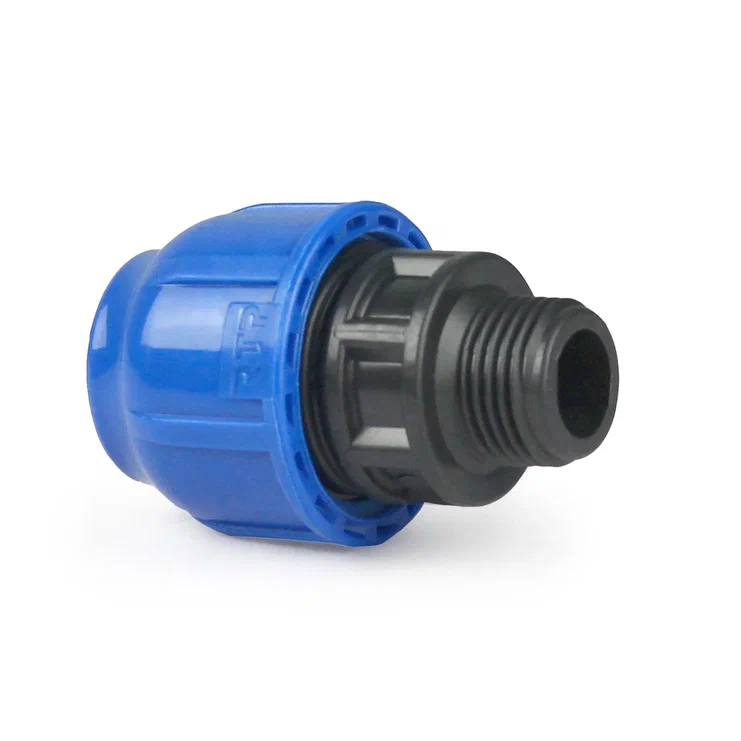

Coupling male
Article number
Standard size
Quantity in the package
Quantity in a box
11495
20x1/2"
230
11496
20x3/4"
220
11502
25x1/2"
140
11504
25x3/4"
130
11500
25x1"
120
14528
32x1/2"
75
22119
32х1 1/4"
75
11509
32х3/4"
75
11506
32х1"
75
33291
40х 3/4"
40
11512
40х1"
40
11511
40х1 1/4"
35
11510
40х1 1/2"
35
14909
50х1"
20
14911
50х1 1/4"
20
14910
50х1 1/2"
20
27934
50х2"
20
22067
63х1 1/4"
18
19040
63х1 1/2"
15
22062
63х1"
15
22066
63х2"
15
28702
75х2"
8
28701
75х2 1/2"
8
28703
75х3"
8
Description
Compression coupling RTP with GAMMA system thread is used in cold water pipelines (with water temperature up to 40°C). The coupling allows you to connect a HDPE (low pressure polyethylene) pipe to plumbing equipment, for example, a pumping station or a submersible pump, made of environmentally friendly material - polypropylene. Installation of a technical piping system or a pipeline for drinking water is quite simple. The HDPE pipe is inserted through the compression bushing into the compression sleeve, fixed with a union ring, the nut is tightly tightened. Thanks to high-quality sealing rings, the system is tight, protected from leaks. Coupling "RTP" withstands pressure up to 16 bar. The service life of the GAMMA system pipelines with proper installation and operation of the system is at least 50 years.
