Product
Elbow
Article number
Standard size
Quantity in the package
Quantity in a box
11525
20
120
11527
25
70
11529
32
35
11530
40
20
11531
50
10
17093
63
7
17415
75
8
17094
90
3
17089
110
3
Description

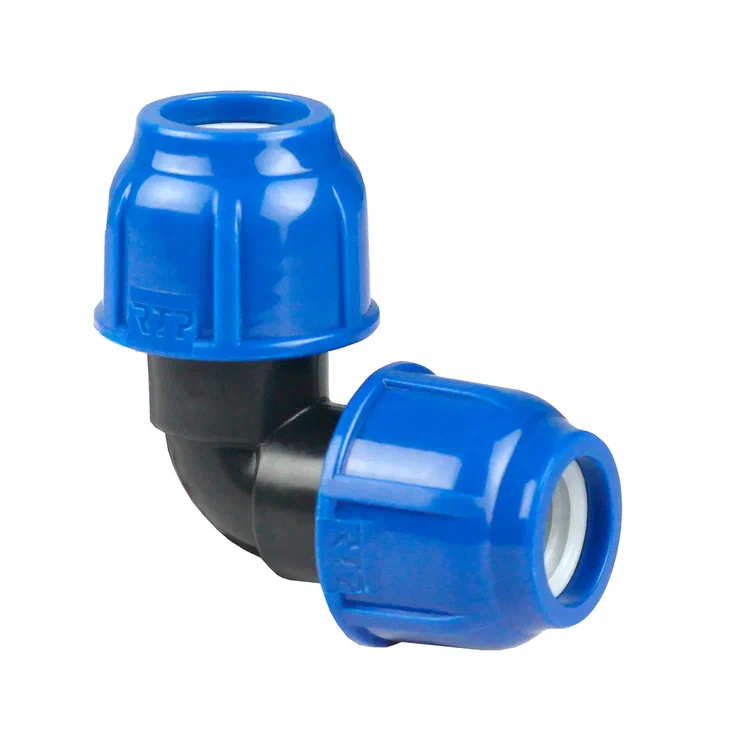

Removal compression RTP of the GAMMA system is applied in pipelines of cold water supply (with water temperature up to 40 °). The bend allows you to connect two HDPE pipes (low pressure polyethylene) of the same diameter at an angle of 90 °, made of environmental material - polypropylene. Installation of a technical pipeline system or a pipeline for transporting drinking water is quite simple. The HDPE pipe is inserted through the compression bushing into the compression outlet, fixed with a union ring, the nut is tightly tightened. Thanks to high-quality sealing rings, the system is tight, protected from leaks. Branch "RTP" maintains pressure to 16 bars. The service life of the GAMMA system pipelines with proper installation and operation of the system is at least 50 years.
