Product
Tee female
Article number
Standard size
Quantity in the package
Quantity in a box
11598
20x1/2"
90
11600
20x3/4"
90
11605
25x1/2"
50
11606
25x3/4"
50
11604
25x1"
50
14532
32x1/2"
30
11610
32x3/4"
30
14531
32x1"
30
14428
40x3/4"
15
14426
40x1"
15
14427
40x1 1/4"
15
24284
40x1 1/2"
15
14429
50x1"
10
14430
50x1 1/4"
10
14431
50x1 1/2"
10
31431
50x2"
8
22338
63x1"
7
21876
63x1 1/4"
12
21878
63x1 1/2"
7
21787
63x2"
6
Description

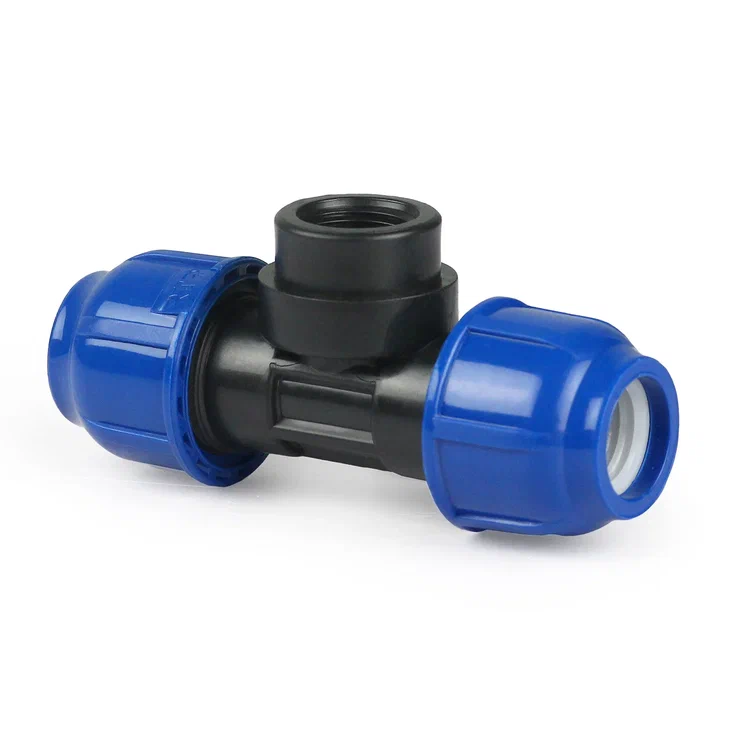

Compression tee RTP with GAMMA system thread is used in cold water pipelines (with water temperature up to 40°). The tee allows you to make a threaded outlet in the line with cold water for connecting additional plumbing equipment (hoses, filling fittings, organizing a shower on the site, etc.) at an angle of 90 °, made of environmental material - polypropylene. Installation of a technical piping system or a pipeline for drinking water is quite simple. The HDPE pipe is inserted through the compression sleeve into the compression tee, fixed with a cap ring, the nut is tightly tightened. The threaded part is screwed to the plumbing equipment. Thanks to high-quality sealing rings, the system is tight, protected from leaks. The "RTP" tee withstands pressure up to 16 bar. The service life of the GAMMA system pipelines with proper installation and operation of the system is at least 50 years.
